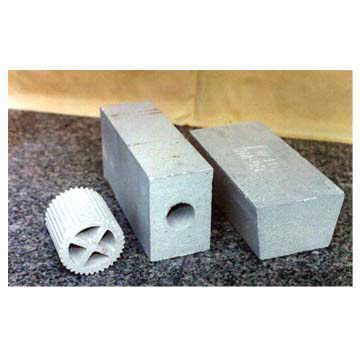

White Brick (Semi-Silica Brick) : WB |
| |
| Key Specifications/Special Features: |
| |
| 1.Refractoriness, SK (Seger Cone) |
26-27 |
| 2.Bulk Density, g/cc |
2.05-2.10 |
| 3.Apparent Porosity , % |
14-20 |
| 4.Water absorption, % |
8-10 |
| 5.Cold Crushing Strength, kg/cm2 |
250-400 |
| 6.Modulus of Rupture, kg/cm2 |
40-70 |
| 7.Chemical Analysis, % Approx : |
75.0 |
| Silica (SiO2) |
| Alumina (Al2O3) |
19.0 |
| Iron Oxide (Fe2O3) |
1.10 |
| 8.Applications : Back-up lining and sidewall lining for
laddle furnace in iron and steel factory, Very high slag resistance bricks
in cupola furnaces is also another best application. |
|
| |
|
Barier Brick
for primary aluminium potline ( PATRA BB 70X ) |
| |
| Key Specifications/Special Features: |
| |
| 1.Maximum Limit Temperature of Application°C |
1200 |
| 2.Bulk Density, g/cm3 |
2.10 |
| 3.Apparent Porosity , % |
13 |
| 4.Cold Crushing Strength, N/mm2 |
60 |
| 5.Thermal Expansion at ( 600°C - 1000°C ),% |
0.35-0.60 |
| 6.Thermal Shock Resistance |
15 |
| 7.Cryolite Resistance (Cup Test),cm2 |
< 4.0 |
| 8.Thermal Conductivity (W/mK), at ( 600°C - 1000°C ) |
1.4-1.55 |
| 9.Chemical Analysis, % Approx : |
70.0 |
| Silica (SiO2) |
| Alumina (Al2O3) |
23.0 |
| Iron Oxide (Fe2O3) |
< 3.0 |
| 8.The data given in this Technical Information. Sheet have been determined as average values on test specimen of
machine-pressed standard bricks or products of similar size to standard bricks.They may not be applied without
reservation to other sizes, since they may vary within reasonable limits and should not therefore be regarded as definite
values of a property. The limiting temperature of application depends on the type of service and the type of shape. |
|
|
- Primary Competitive Advantages:
- Markets Reference :
- Value of Minimum Order:
- Payment Term:
- Deliver lead-time:
- Prompt or 30-45 days after order confirmation depending on shapes
- FOB Port
- FOB Price Range
- Please contact for quotation
-
|
|
|
| |
| |
|
|
|
|
|
